OLT / ONU for FTTH (1310nm 1490nm 1550nm)

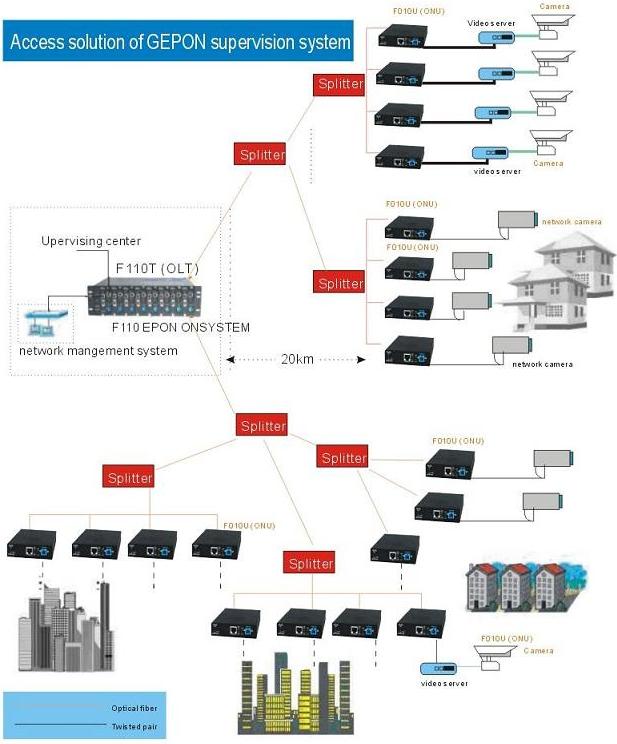

F110 GEPON System Deployed Drawing:

Description

Fiberer-F110T/ Fiberer-F010U(ONU) / Fiberer-F011U(ONU) GEPON system is the latest smart GEPON Equipment, which is a telecom grade FTTH broadband access equipment mainly for telecom Operator and Large Group users with the characteristic of high integration, flexible application , high stableness, easy management, flexible extend and buildup the network, as well as providing QoS function. Fiberers GEPON Equipment is with the latest standard of GEPON System based on IEEE802.3ah. The fiber link speed can reach up to 1.25Gb/s and each EPON OLT system can distribute into 32 remote ONUs to build up the fiber passive network by a max 32 way optical splitter with the advantage of big capacity of transmission, high security, flexibility of buildup network, economization the resource of fiber, mainly applies for FTTH projects,
which can access to IP telephone, Broadband data and IPTV.

Features

.Standard Protocol Fully complies with IEEE 802.3ah IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.1d IEEE 802.1p IEEE 802.1q IEEE 802.1x RFC1155 RFC1157 RFC1112 RFC1113 etc.

.Nota Switch Capacity 16G

.Bandwidth adjustment pace length 1Kbps Support 4K VLAN base on 802.1q, also can support up to 8K MAC address

Parameter

OLT Fiberer-F410T

F410T is a new generation of small type GEPON Equipment. Which is a telecom grade FTTH broadband access equpment who provide for Telecom Operator. Comparing with common EPON products. It can supply higher bandwidth speed and connect more end-users, final to reduce operating investment cost effectively.

F410T is operators last mile of ideal FTTH solution with high integration, flexible application, high stableness, easy management, flexible to extend and buildup network, as well as providing QoS function.

F410T comply with newest EPON system standard base on IEEE802.3ah. The fiber link up and down speed can reach to 1.25Gb/s. Each PON OLT system can distribute into 32 remote ONUs to build up the fiber passive network by a max 32 way optical splitter with the advantage of big capacity of transmission, high security, flexibility of buildup network, economization the resource of fiber and to reduce related devices quantity.

F410T is a high performance device, through FTTH/FTTB/FTTC fiber optical network to provide transmission service for such like family users, enterprise users etc where max bandwidth can reach to 1Gbps. Meanwhile, by natural advantage of PON system, Operator can economic save cost on construction and using fiber cable, it can easily access to high speed of Broadband data, IP telephone, and IPTV.

This system combine with OLT(Optical Line Terminal), ONU(Optical Network Unit) and Splitter, OLT have 4 uplink port which connect IP network, meanwhile it have 4 EPON downlink port, each port can support 1: 32 splitter through single fiber cable. So one OLT device can support 128 ONU end-user within transmission distance of 20 kilometers.

Key features

1Box syle structure, 1U height, simple&flexible install and maintenance

2Complies with IEEE802.3ah standard

3High splitter ratio, high fiber using

4Allow Exchange ability

5ACL-access control list

6DBA-dynamic bandwidth arranagement
7IP ToSIEEE802.1p

8QoS support: IP ToS, IEEE802.1p

9ONU auto-identify

10Flexible QinQ

11Port Mirror

12Frame filtering, broadcast/ Unknow unicast/ Unknow multicast policing

13Support MAC address restriction

14AES-128 encrpytion tachniques

15Support IGMP Snooping

16Support TCP/IP, ARP, IGMP protocol

17Powerful OAM function

18Support IEEE802.1x

19GUI interface, support band-in / band-out management

F410T
Hardware character
Frame
Dimension	440mm (W) x 207mm (D) x 43mm (H)
Weight	3KG
Power Consumption(MAX)	30W
Temperature Operating Temperature050 Storage Temperature-3060 Relative humidity1090% (No agulation)
Power Supply
Power Supply AC	100-220V
port character
Console port	1 RS232C DB-9
LAN portout of band management port	2 RJ45 10/100Base-T
Uplink interface	4 GE port SFP connector both optical or electricity are ok
Fiber	Singlemode or Multimode Fiber
Connector	LC Connector
PON port	4 1000M Port
Standard Protocal	IEEE802.3ah
Fiber	Singlemode Fiber
Connector	SC Connector
Max splitter ratio of each PON port	32
Speed ratio	symmetry 1.25 Gbps
estimated Optical Loss	28 dB
Wavelength	transmit: 1490 nm Receive: 1310 nm
Super character
Exchange function	non-stop line speed switch ability 8KMAC address table Support 512 Multicast Entry Support IGMP Snooping Support 4094 VLAN802.1Q IEEE802.adUp to 4 Uplink GE port aggregate support base on input outputs port mirror
QoS	8 CoS alignment/ONU user IEEE 802.1q&p IPV4 ToS PRI traffic shaping DBA dynamic bandwidth Allocation
Security	ACL AES-128 encrpytion tachniques
User Authentication management	IEEE 802.1x Authentication
System management	support band-in & band-out mangement ONU Auto-Identity Power management
Power Supply AC	100-240V

OLT Fiberer-F110T

Fiberer-F110T

Packing Dimension(mm):440*210*45
Weight:3kg

Type	Specification	Remark
Connect Port	RS-232 Control Port	To Connect PC
	Craft Port	To Connect PC
	EPON SC Port	EPON Fiber Port
	RJ-45 100/1000M Ethernet	To Connect Router / Switch
	1000Base-X Fiber Port	To Connect Router / Switch
Management Function	SNMP
Power Supply	AC input 100~240V
Working Environment	0 ~60	Operating tempreture
Working Environment	5%~95% No coagulation	Relative humidity
Max Transmission Distance	20KM
Max Transmission Speed	25G / 2.5G
Installing place	Control Centre

ONU

Fiberer-F010U(ONU)

Support single fiber WDM technology (downstream 1490mm, upstream 1310mm), only need to link with OLT together by one fiber, the transfer lengths at least 20Km.
Bandwidth distribution has flexible, downstream share bandwidth by adapting encrypt broadcast transfer way for different user. .Upstream share bandwidth by TDMA . Adjust automatically speed rate according to the line status. Support minimum speed rate adjustment base on 1kbps, and establish firm basic to fractionize business for telecommunication dealer.
Support generally team broadcast function. User can choose to achieve mutual video multimedia business by themselves name (such as VOD, Video conference)
Bind user, MAC address and IP address together in order to prevent account was embezzled hostility, ramble, virus spread abroad and attack of hostility data stream., so that can provide perfect safety guarantee measure for user.
Support multi LLID and single LLID configuration mean. Different user and business can adapt different LLID access. Guarantee users different OOS grade.
Installation and maintenance are very easy. Support differed local/long-distance and many means to manage configuration and upgrade of software. Work in partial port OLT. It can make long-distance malfunction diagnosis and orientation function come true, and greatly reduces maintenance workload.
Network connects: Provide high speed date business for user.
FTTH connects: Provide high speed date business a
FTTB connects: adapt the mean of fiber to corridor or big corridor to provide high speed data business.
Technology guide line:
Standard :IEEE 802.3ahIEEE 802.3IEEE 802.3uIEEE 802.3xIEEE 802.3z IEEE802.1dIEEE 802.1pIEEE 802.1qIEEE 802.1xRFC1155RFC1157RFC1112RFC1113 and so on.
1 10/100M BASE-TX Port
1 10/100/1000M BASE-TX Port
1 EPON SC Port
1 RS232 Port
Physics feature
Physics dimension (162 x 117 x 30, unit: mm)
Power supplyDC 5V
Function loss5W
Temperature
Operating temperature045
Storage temperature-3060
Relative humidity5%90% (non-condensation)

Type	Specification	Remark
Connect Port	RS-232 Control Port	To Connect PC
	EPON SC Port	EPON Fiber Port
	RJ-45 10/100M Ethernet	To Connect Router / Switch
	RJ-45 10/100M/1000 Ethernet	To Connect Router / Switch
Power Supply	AC input 5V/2A
Working Environment	0 ~60	Operating tempreture
Working Environment	5%~95% No coagulation	Relative humidity
Max Transmission Distance	20KM
Max Transmission Speed	25G / 2.5G
Installing place	At user site
