1064nm Polarization Maintaining Fiber Collimator |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| The 1064nm PM Fiber Collimator is the basic element for in-line PM fiber
optics components, such |
||
|
as
PM isolator and PM FWDM. It has high extinction ratio, low insertion
and high return loss. The |
||
| unique
processing and high quality AR coating also enable this collimator
to handle high power. |
||
| |
|
|
| |
|
|
| |
|
|
Performance Specifications
|
Parameters |
Unit |
Values |
| Center Wavelength |
nm |
1064 or Specify |
| Operating |
nm |
+ /-30 |
| Working Distance |
mm |
5 or Specify |
| Typ.
Insertion Loss @ |
dB |
0.25 |
| Max. Insertion Loss @ |
dB |
0.3 |
| Typ.
Extinction Ratio |
dB |
25 |
| Min. Extinction Ratio |
dB |
22 |
| Min. Return Loss |
dB |
60 |
| Tensile Load |
N |
5 |
| Fiber Type |
|
PM 980 Panda Fiber or Specify |
| Operating Temperature |
|
-5 to +70 |
| Storage Temperature |
-40 to +85 |
|
| Above specifications are for device without connector. PM fiber & connector
key are alignde to the slow axis. |
||
| *For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower,
and ER will be 2dB lower. |
||
Package Dimensions
Ordering Information (fill on the line)
| PMC |  |
|
|
|
|
|
Lens Diameter |
Pigtail Type |
Dual fiber pigtail (for 1.8mm only) |
Center Wavelength |
Package Type |
Working Distance |
|
1 - 1.8mm 2 - 1.0mm(for single fiber only) S - Specify |
1 - Single fiber pigtail | S - Specify | 06 - 1064 nm SS - Specify |
1 - Metal holder 2 - Glass tube |
1 - 5 mm S - Specify |
|
|
|
|
|
|
| Connector Type |
Fiber Type |
Slow Axis orientation |
Fiber Length |
Lens Type |
|
| 1 - FC/UPC 2 - FC/APC 3 - SC/UPC 4 - SC/APC N - None S - Specify |
B - 250um Panda Fiber D - 400um Panda Fiber L - 900um loose tube Panda Fiber S - Specify |

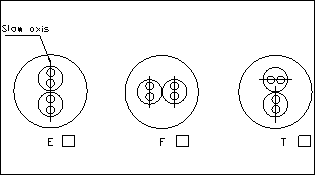

O - For single fiber collimator I, H, T - For Dual fiber collimator(refer to figure) S - Specify |
C - 1.5 m S - Specify |
G - Grin lens C - C lens |
| |
||
