1064nm Polarization Insensitive Isolator
Fiberer's Polarization Insensitive 1060 nm Isolator features a compact package, low insertion loss, high isolation, high return loss and excellent environmental stability and reliability . The component is designed to meet Telcordia 1221 quality standards.
Features
 Applications

High Isolation
Low Insertion Loss
High Return Loss
Low PDL
Optical Path Epoxy Free

Fiberoptic Amplifiers
CATV Fiberoptic Links
Fiberoptic Systems Testing
Fiberoptic LAN Systems
Telecommunications

Spec and Parameter
Parameter Singl stage Dual stage
Central Wavelength 1064nm
Peak Isolation 40dB 55dB
Min. Isolation at 23¡ãC;CWL¡À15nm,all polarization states 30dB 45dB
Insertion Loss at 23¡ãC;CWL¡À20nm,all polarization states 1.5dB 2.4dB
Max. Insertion Loss at -5-70¡ãC;CWL¡À20nm,all polarization states 2.0dB 3.4dB
Return Loss >50dB >50dB
PDL ¡Ü0.15dB ¡Ü0.15dB
PMD ¡Ü0.20ps ¡Ü0.05ps
Optical Power ¡Ü300mW
Tensile Load ¡Ü5N
Fiber Type Corning Flexcore 1060
Operating temperature
 -5¡æ to +70¡æ
Storage Temperature
 -40¡æ to +85¡æ
*Above specification are for device without connector.

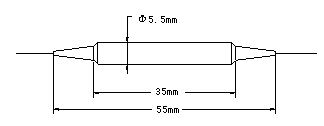

Pictures

Information of Order to Provide
IS Type wavelength Grade Pigtail Fiber Length Connector
  S=single stage
D=dual stage		 10=1064nm
13=1310nm
14=1480nm
15=1550nm
16=1650nm
18=1585nm
16=1659nm
xx - others		 P=P Grade
A=A Grade		 B=250um bare fiber
L=900um

1=1.0m
2=2.0m

 NE=None
FA=FC/APC
FC=FC/PC
SA=SC/APC
SC=SC/PC
ST=ST/PC
LA=LC/APC
LC=LC/PC
XX=others
