Fiber Pigtail (Fiber Tip)
Features Applications

Low Insertion Loss
High Environmental Stability

Collimators
Isolators
Switches
DWDM
Circulators

Spec and Parameter
Parameter Value
External Diameter (D) 1.8¡À0.005mm. 1.0¡À0.005mm
Standard length (L) 5.0+/-0.5mm for single fiber tip6.0+/-0.5mm for dual fiber tip
Slope Angle (¦È) 0¡À0.5, 8¡À0.5, 10¡À0.5
Core Diameter (d) 125¦Ìm
Fiber Type 250¦Ìm, 900¦Ìm corning SMF-28, orPanda PM Fiber
AR-Coating <0.1%@center wavelength, <0.25%@+/-40nmDual AR coating R<0.25%@1310&1550nm
Scratch/Dig 10/5
Fiber Length 2.0 m for SMF-28, 1.0 m for PM Fiber

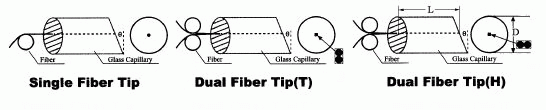

Pictures

Information of Order to offer
FP Type Wavelength External diameter Angle polish Fiber type Fiber length
  S=single fiber
V=dual fiber
VH=dual fiber
HT=triple
 00=No AR Coating
13=1310nm
14=1480nm
15=1550nm
35=1310/1550nm
95=980/1550nm
4=others		 1=1.8mm
2=1.0mm
3=others

0=0degree
1=8degree
2=10degree
3=11degree

1=250um bare fiber
2=900um buffer
3=Panda PM fiber
4=others

 10=1.0m
15=1.5m
18=1.8m
20=2.0m
28=2.8m
30=3.0m
