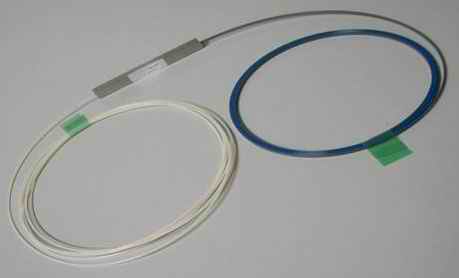

Splitter
Features Applications

Compacted Packaging Size
Loss IL, PDL, Uniformit
GR-1209-CORE & GR-1221-CORE

CATV
Telecommunications & Data Communication.
FTTH & EPON
Fiber Optic Equipment & Systems

Spec and Parameter
Port Configuration 1 x 4 1 x 8 1x16 1x32
Max. Insertion Loss(dB)* <=7.5 <=11.0 <=14.0 <=18.0
Loss Uniformity(dB)* <=1.0 <=1.0 <=1.5 <=2.0
Package Size(mm)HxWXL 4x4x40 4x4x42 for half pich
4x5x40 for half pich
 4x5x50 4x7x60
PDL(dB)* <=0.3 <=0.3 <=0.4 <=0.45
Return Loss (dB)* >=50
Directivity (dB)* >=55
Storage Temperature (℃) -40~85
Operating Temperature(℃)
-40~85
Operation Wavelength (nm)
1310&1550 +/-40nm
Fiber Type
SMF-28 or customer specified
Connector Type
Custom specified
* tested at 23℃ and including the loss of connector
Information of Order to offer
PLC Input
Channel 		Input Fiber Type Input Fiber length Output Channel Output Fiber Type Output Fiber Length Connector
  1=1 ch
2=2 ch
 B=250um Bare Fiber
L=900um Loose Tube
T=900umm Tight Buffer 		10=1.0m
15=1.5m
04=4 ch
08=8 ch
16=16 ch
32=32ch

B=250um Bare Fiber
L=900um Loose Tube
T=900umm Tight Buffer

10=1.0m
15=1.5m

NE=None
FA=FC/APC
FC=FC/PC
SA=SC/APC
SC=SC/PC
