2070nm ASE Light Source

2070/2100nm ASE Light Source Specification

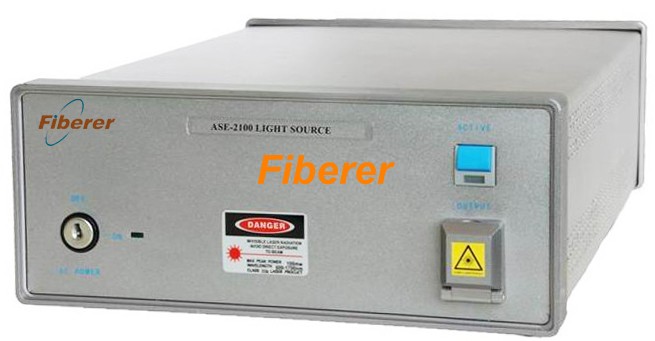

2070/2100nm ASE Broadband Light Source (above) Description -2070/2100nm ASE Light Source: 2070/2100nm ASE Broadband Light Source, based on Amplified Spontaneous Emission (ASE) laser diode (LD), center wavelength 2070+/-10 nm, output power≥10 mW, -20 dB bandwidth ≥100 nm, output power stability ±5% (30 min warm up). OEM model is well available on customer’s special request.   Applications - 2070/2100nm ASE Light Source: Passive optical component testing Gas spectral sensing and imaging Biomedical applications Scientific measurement   Features - 2070/2100nm ASE Light Source: Broad bandwidth Near IR wavelength range Customized center wavelength High output power   Specifications - 2070/2100nm ASE Light Source: Parameters ASE-2100 Center wavelength (nm) 2070+/-10 Output power (mW) ≥10 Bandwidth (-20 dB) ≥100 nm Output power stability (dB) ±5% (30 min warm up) Output Fiber SMF-28 Operating temperature (℃) 5~+35 Storage temperature (℃) -10 ~+65 Relative humidity (%) 20~80 Power Supply 110/220V AC, +5V DC; >500mA; △V＜1% Dimensions (L×W×H, mm) 320×220×90(Desk-top), 1U Rack, etc   Typical Spectrum     Ordering Information - 2070/2100nm ASE Light Source ASE-2100 Package Type Output Power Connector   D=Desk-top 1U=1U Rack etc 10=10mW etc FC/UPC FC/APC
