ASE Light Source - ASE Light Source-1050 S band C band L band
Applications
Optical fiber sensing
Optical fiber passive component spectrum testing
Optical fiber grating, DWDM, filter testing
Optical fiber measurement equipments
Features
High output power
High stability
Specifications
Parameters
ASE-1050 Module
Operating wavelength (nm)
1040 ～1075
1020～1080
Output power (dBm)
7.0 ～13.0
Spectral density (dBm/nm)
-20 ～ -12
Spectral stability (dBm/nm)
≤±0.005(5 min)
Output power short-term stability (dB)
≤±0.01 (5 min)
Output power long-term stability (dB)
≤±0.03 (8 hour)
Pigtail fiber
HI1060
Connector type
FC/PC, FC/UPC or FC/APC
Operating temperature (℃)
20～ +50
Storage temperature (℃)
-20 ～+70
Relative humidity (%)
20～80
Power supply
110/220V AC，+5V DC, Driving current >500mA; △V＜1%
Maximal Power Consumption
10W
Dimensions (L×W×H mm)
90×70×19, 320×220×90
Remark：Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
1.Test condition: fixed temperature, CW.
2. Test condition: temperature variation ±2℃, CW.
Typical Spectrum

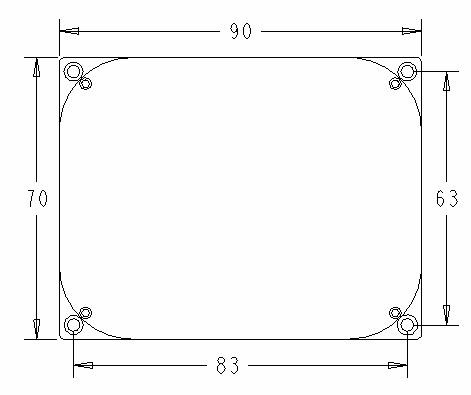

Installation of Module
Ordering Information
ASE-1050
Type
Output Power
GFF
Connector
M=Module D=Desk-top
10= larger than10dBm 13=larger than13dBm etc
G=GFF N=Without GFF
FC/UPC FC/APC etc
Parameters
ASE-C+L
Operating wavelength (nm)
1525 ～1610
Output power (dBm)
10~25.0
Spectral density (dBm/nm)
≥-17
Spectral stability (dBm/nm)
≤±0.01(5 min)
Output power short-term stability (dB)
≤±0.01(5 min)
Output power long-term stability (dB)
≤±0.03(8 hour)
Pigtail fiber
SMF-28
Connector type
FC/PC, FC/UPC or FC/APC
Operating temperature (℃)
0 ～ +65
Storage temperature (℃)
-20 ～+70
Relative humidity (%)
20～80
Power Supply
110/220V AC, +5V DC, Driving current >500mA; △V＜1%
Maximal Power Consumption
10W
Dimensions (L×W×H mm)
150×125×31, 320×220×90
Remark：Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
1.Test condition: fixed temperature, CW.
2.Test condition: temperature variation ±2℃, CW.
Ordering information
ASE-C+L
Type
Output Power
GFF
Connector
M=Module
D=Desk-top
10=10dBm
13=13dBm
17=13db
etc
G=GFF N=Without GFF
FC/UPC
FC/APC
etc
